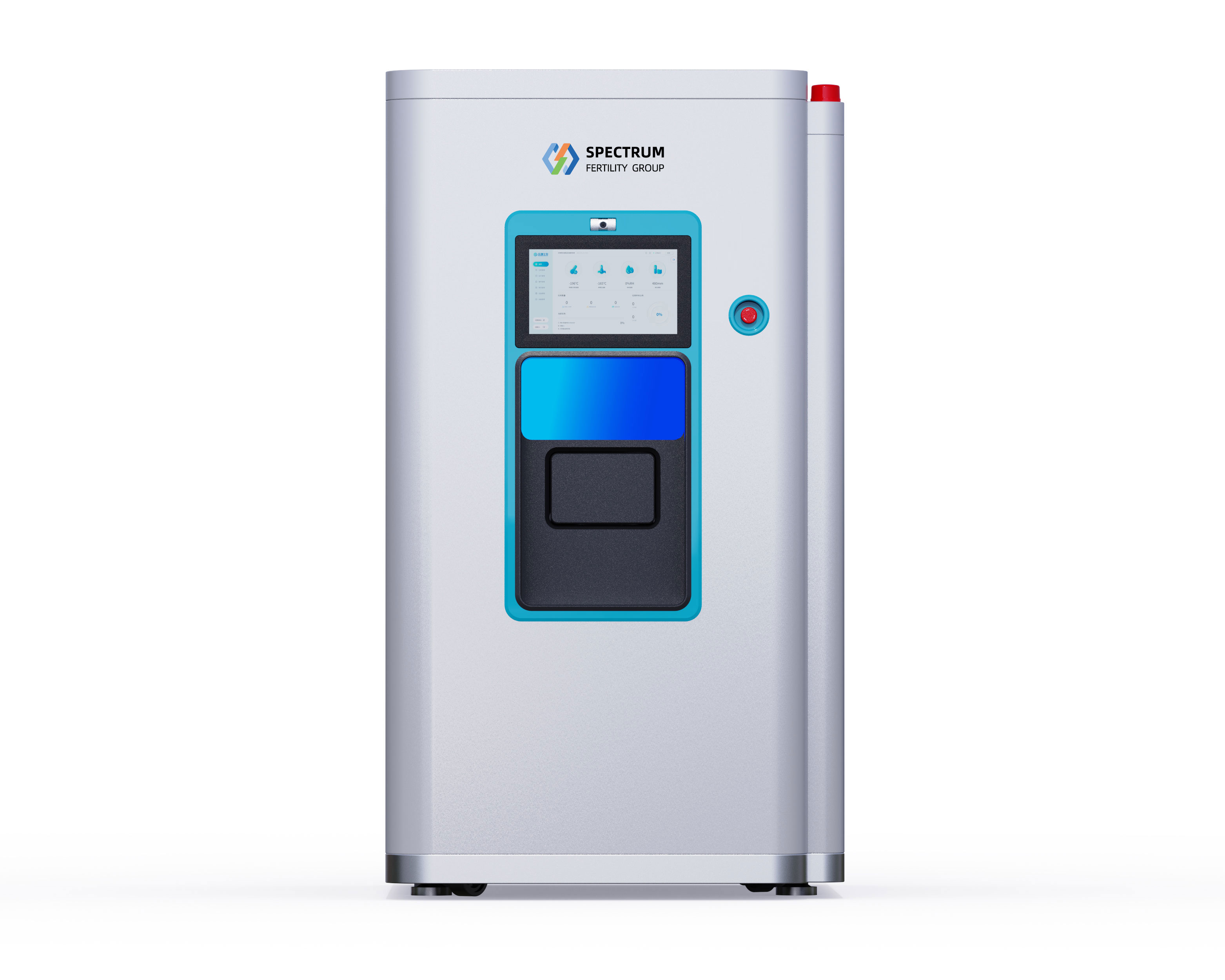

Hatchferti - automated cryogenic storage equipment

Purpose: Used to safely manage cryogenic preservation of frozen embryos, eggs and/or other laboratory specimens

Application: An automated Liquid Nitrogen Storage System

Product Specification

Mainly used in assisted reproductive technology field to automate and manage the process of freezing embryos, eggs and/or other laboratory specimens with accuracy and efficiency

Product Feature

Unleash IVF lab productivity by automating the egg and embryo storage process and maximizing storage space

Quickly and accurately locate target sample without interfering with other specimens

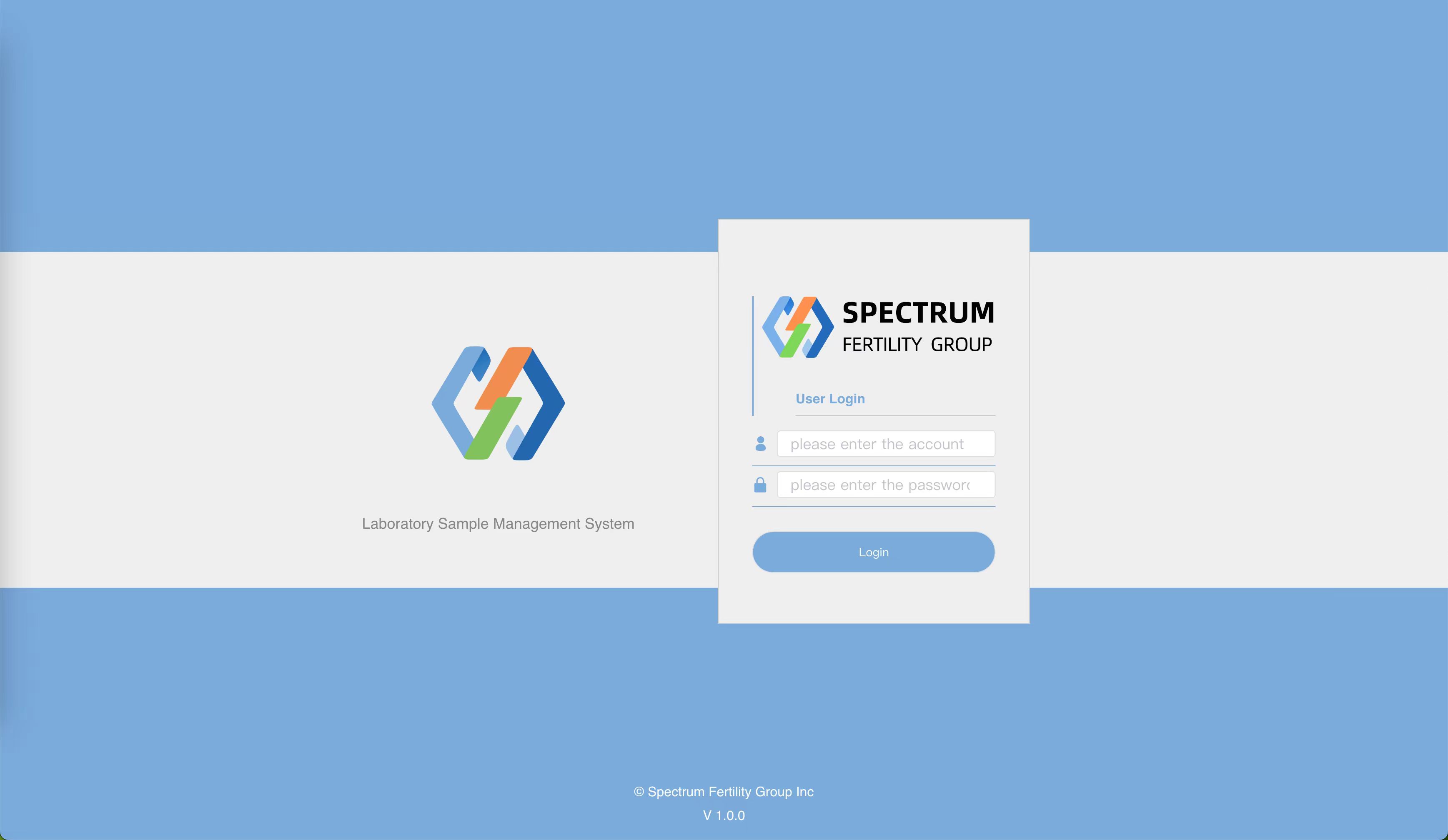

Provide automated information management system and sample traceability

Built-in Automatic liquid nitrogen supply system

Easy to use with auto messaging system for status management


Product introduction

Item

Parameter

Product Model

IVF-500-A

Size

433*630*780 inches / 1100×1600×1980 mm (WDH)

Max Capacity

15040 Embryos

Weight

Empty:860kg;Fully loaded:1200kg

Screen Size

15.6-inch LCD touch screen

Environment temperature

Liquid phase nitrogen, -196 ℃

Temperature in embryo selecting area

Gas phase nitrogen, ≤ -150 ℃

Consumption of liquid nitrogen

Static: ≤ 18L/day

Power consumption

Standby: 400W; Operation: ≤ 1800W

Power Supply

220V 50Hz 10A

Work environment

Room temperature: 10℃~30℃
