Products

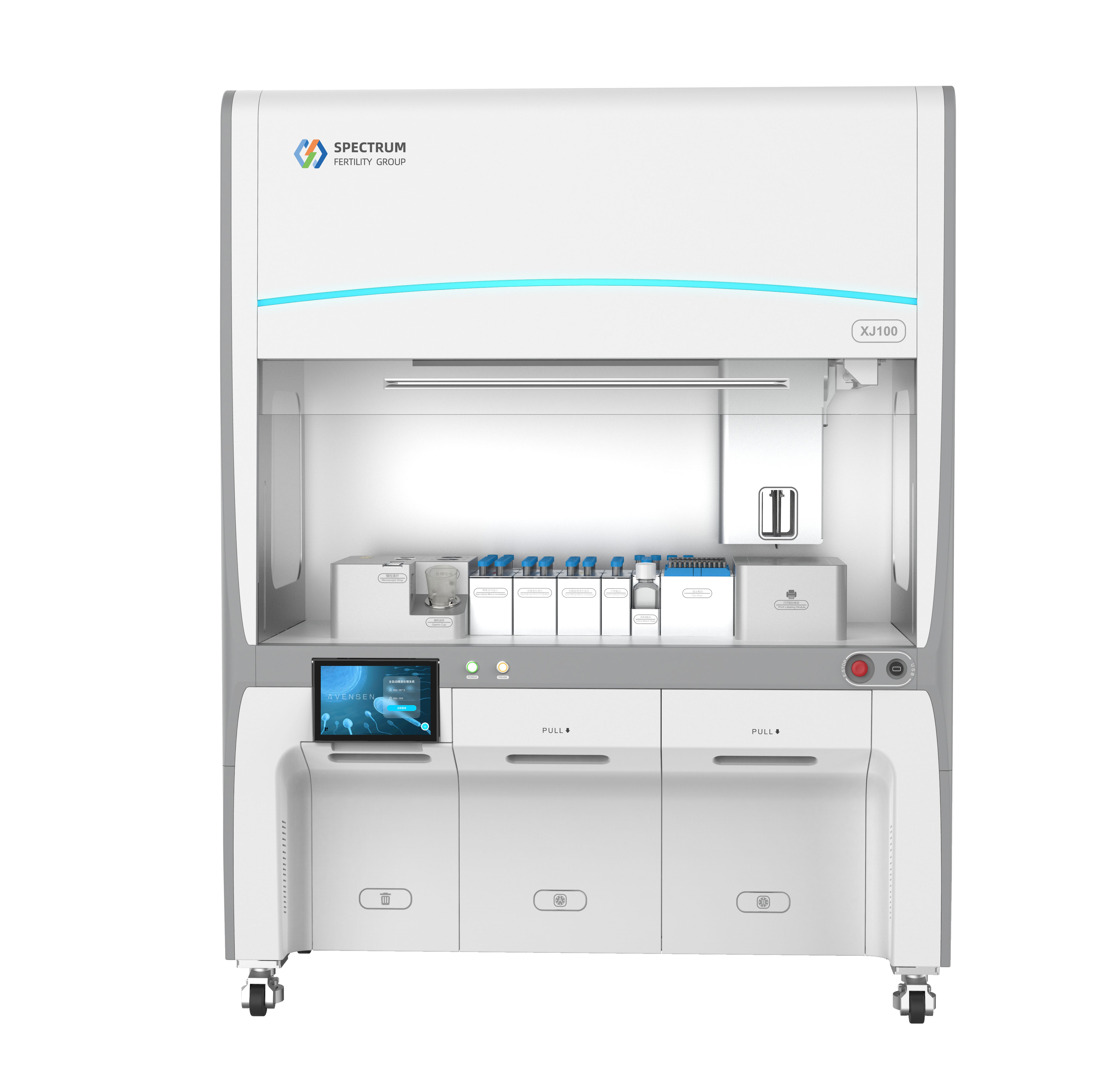

Automatic semen processing system

Purpose: Utilizes a discontinuous density gradient centrifugation method to automatically process semen, helping laboratories ensure sample safety and achieve effective quality control

Application:  The fully automated semen processing system integrates both liquid preparation and sperm washing functions, customized specifically for IVF laboratories

Product Specification: The equipment meets the requirements of the World Health Organization Laboratory Manual for the examination and processing of human semen (5th edition) for the preparation of semen by non-continuous density gradient centrifugation, with accurate quantitative processing, high consistency of operation, and stable quality of semen processing

Product Feature:

Ensure sample safety and prevent contamination and mix-ups

RFID automatically identifies and verifies patient information

Automatically detect the liquid level, adjust the suction head position, and accurately transfer the liquid

Improve efficiency: allow six independent samples running each time

Automated information management system to provide full traceability

Product introduction

Item

Parameter

Size

571*292*729 inches /1450*740*1850 mm (W*D*H)

Weight

485kg

Work Platform

Certified by LGA for its hygiene characteristics, it has sustained stability against bacteria and fungi.

Temperature of Constant temperature table

37℃± 0.5 ℃

Centrifuge machine

The centrifuge was equipped with an electronic lock and a mechanical lock, and manual intervention

 could be used to pull out the centrifuge in case of emergency to protect the safety of samples. It also

 can be pulled out for cleaning maintenance as needed.

Centrifugal force range

1~1000g

Dimensions of touch screen

10.1-inch

Lighting system

3 LED lights, the average illuminance of the working area is ≥500lx; The lighting brightness is

 continuously adjustable on the touch screen, which can meet the needs of different operating steps

Voice broadcast system

Voice alarm and prompt are available

Alarm light

External three-color alarm indicator, brightness can be adjusted

The power supply voltage

AC 220V  50Hz
